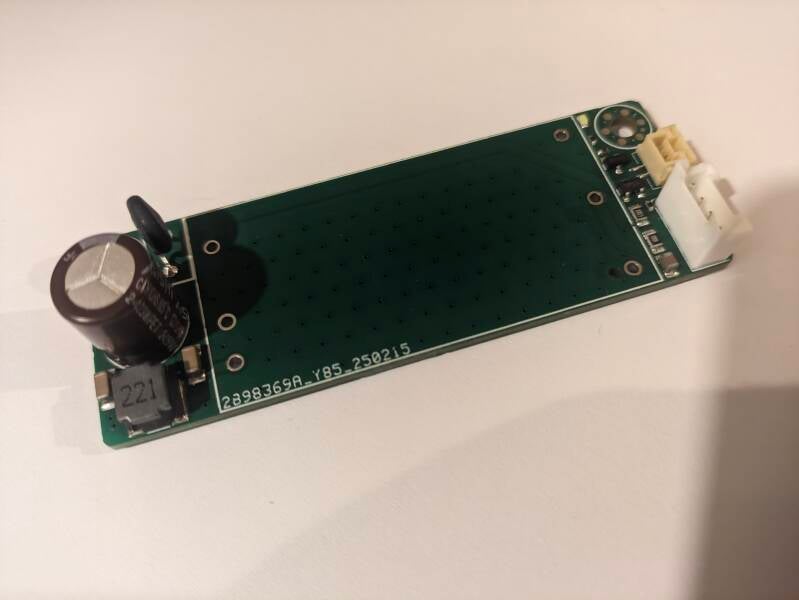

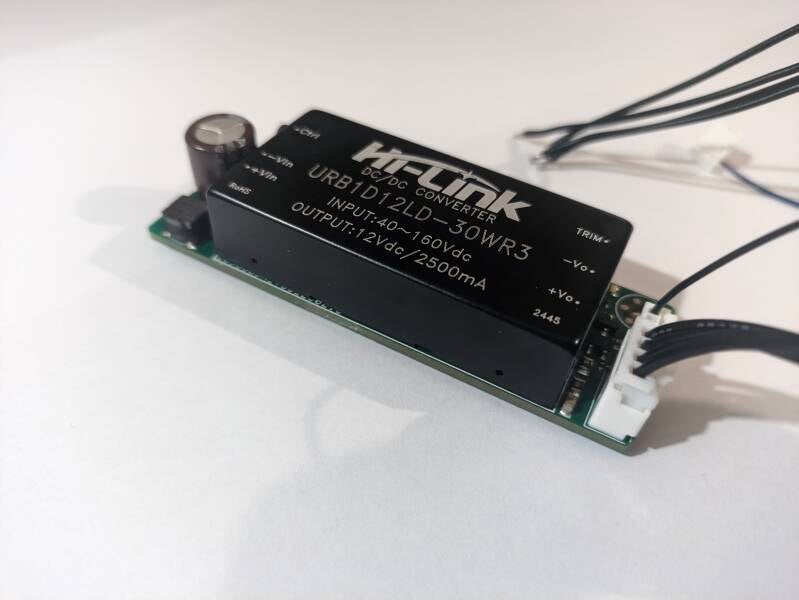

ZeroDrain 12V DC-DC Converter

🔹 Zero Power Consumption When Off – Equipped with a high-side switch, this converter can fully disconnect itself, ensuring absolute zero power draw when not in use.

🔹 Ultra-Clean Power Input – Say goodbye to noise! With extensive filtering, this unit eliminates all unwanted interference, delivering pure and stable power to your devices.

🔹 Built-in Inrush Current Protection – The integrated NTC on the input prevents sudden current spikes.

🔹 Isolated and Short circuit protection – This converter features full isolation to prevent ground loops and electrical interference. Its built-in short circuit protection instantly cuts power in case of a fault, preventing damage to both the converter and your connected devices.

Specifications:

✔ Voltage Range: 40V-160V (Unlock full 30W power above 60V)
✔ Compact & Durable: 73.2mm × 25.9mm × 15.3mm
✔ Enable Pin: 3.3V-5V
✔ High Efficiency & Robust Design

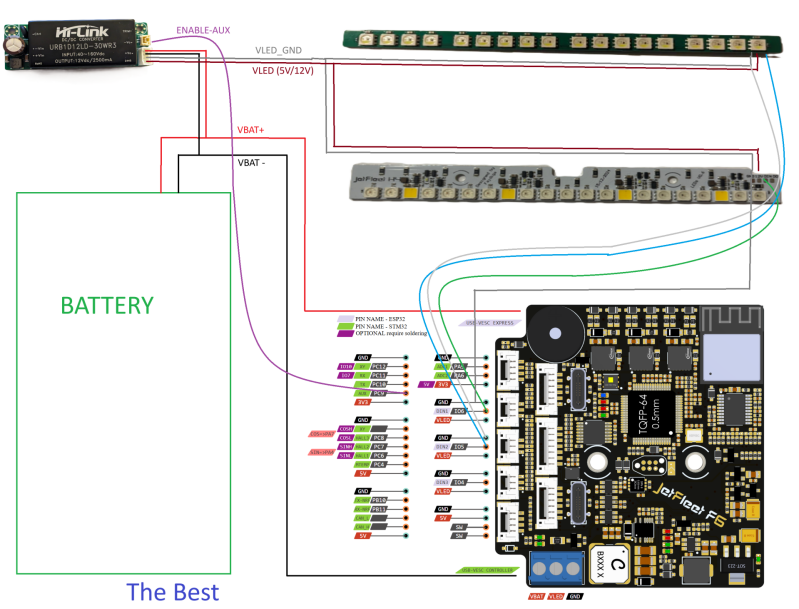

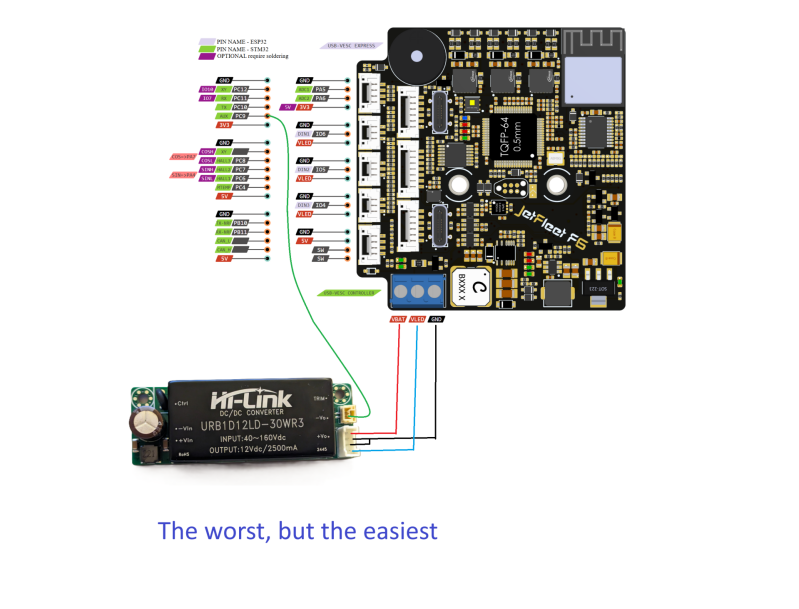

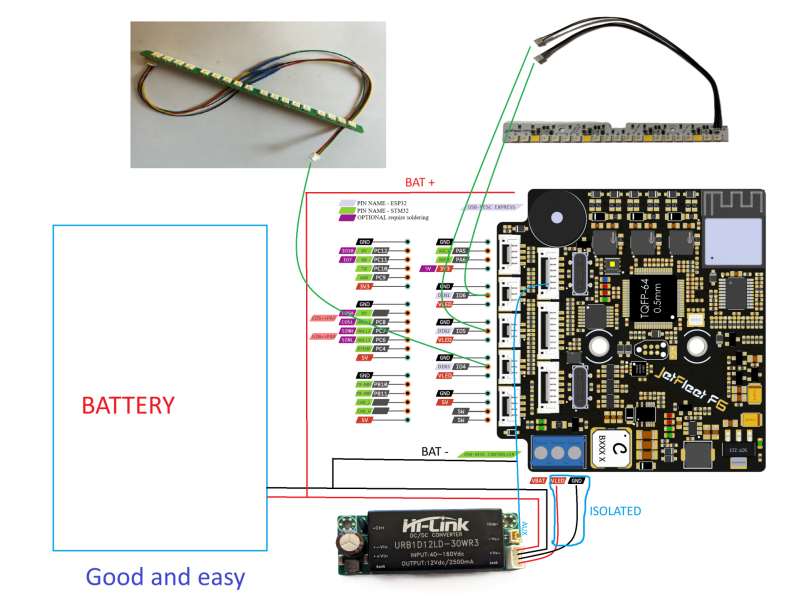

✔ Plug&Play with JetFleet F6

** Wires JST PA <-> JST PA 20cm and JST GH are included
