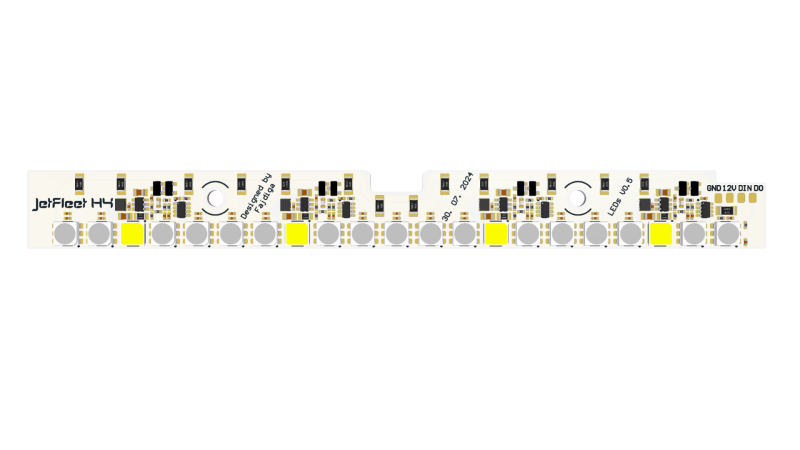

JetFleet H4 LEDs

Compatibility and Usage:

These RGB LEDs operate at 12V.
You can use them either as standalone units or chain them together. LEDs have integrated 15k pull-down resistor to eliminate EMF as much as possible.
Led dimension 155 * 16.5mm they fits in Fungineers metal box and VOW casings …

Brightness and Efficiency:

-At maximum brightness, they consume 24W.
-Calculated brightness is ~3500lm.
-The LEDs are equipped with temperature protection, which kicks in at 60 degrees Celsius.
-Additionally, the white LEDs utilize analog driving instead of PWM, ensuring flicker-free operation.
-Synchronous drivers enhance their performance compared to regular drivers.

Light Output:

The white LEDs have a typical luminous efficacy of 223 lm/W. One of the highest efficiency on the market.
Each white led is individually controlled.
The RGB LEDs are model WS2815B.

Heat Dissipation:

The LEDs are mounted on an aluminum PCB, ensuring efficient heat dissipation.

**Price is for one LED strip**

Options:

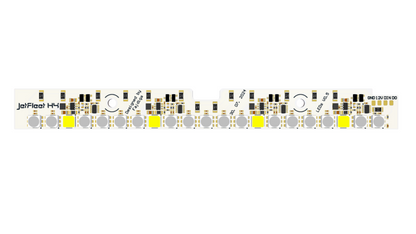

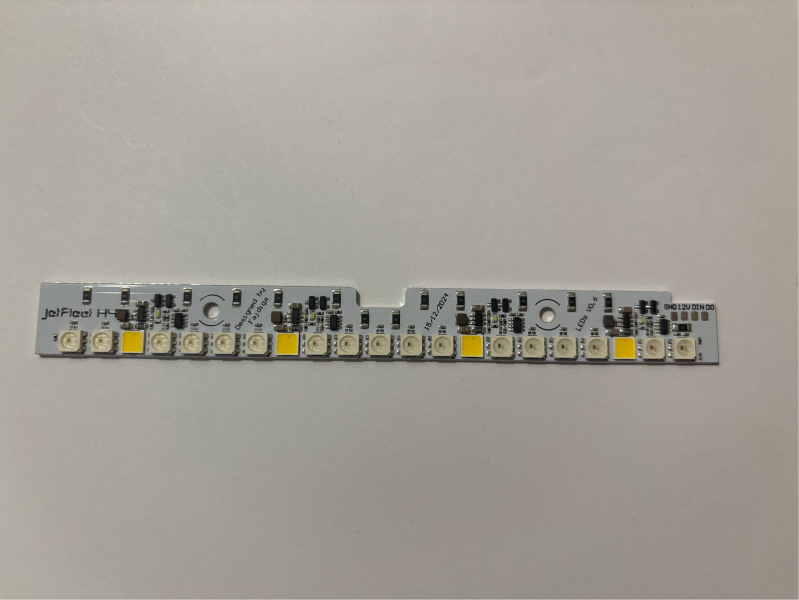

JetFleet H4

• Description: LEDs on a PCB without any wires or connectors.

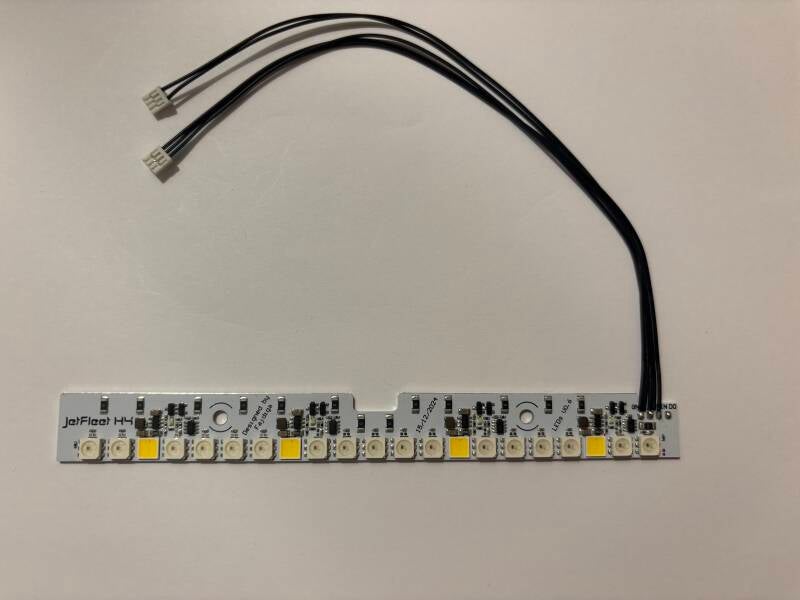

JetFleet H4 & double JST GH 3pin

• Description: LEDs on a PCB with a JST GH 3-pin connector and 20cm of wires, suitable for JetFleet F6, without current limit. Use both two connector to distribute all required current.

JetFleet H4 & double JST GH 4pin

• Description: LEDs on a PCB with a JST GH 4-pin connector and 20cm of wires, suitable for Thor, without current limit. Use both two connector to distribute all required current.

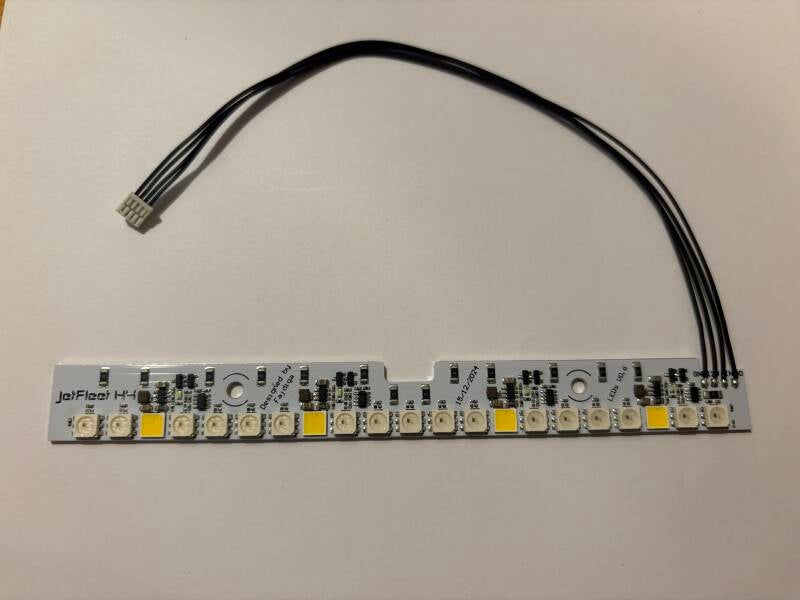

JetFleet H4 & JST GH 4pin

• Description: LEDs on a PCB with a JST GH 4-pin connector and 20cm of wires, suitable for Thor, with a 1A limit. (Set brightness up to 80% in refloat package)

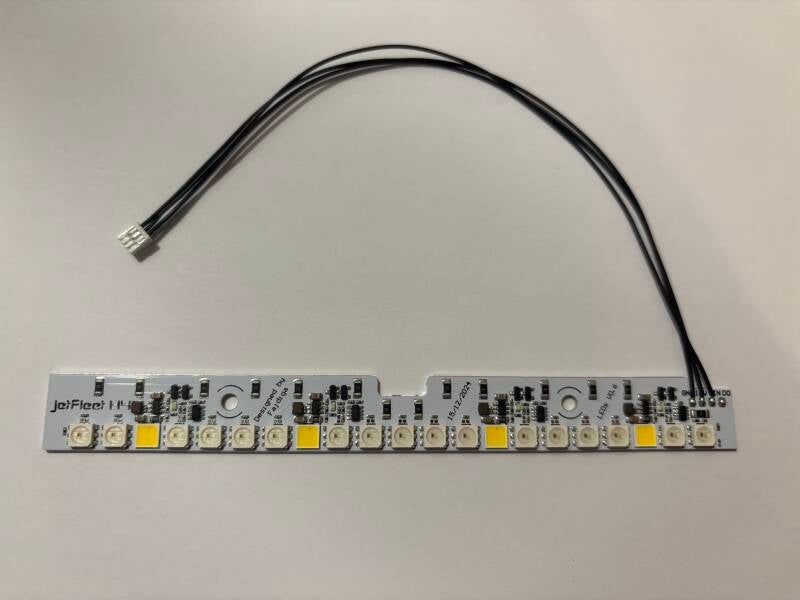

JetFleet H4 & JST GH 3pin

• Description: LEDs on a PCB with a JST GH 3-pin connector and 20cm of wires, suitable for JetFleet F6, with a 1A limit. (Set brightness up to 80% in refloat package)
