12V RGBW LEDs
12V RGBW LEDs
5.0 / 5.0
(2) 2 total reviews
Couldn't load pickup availability

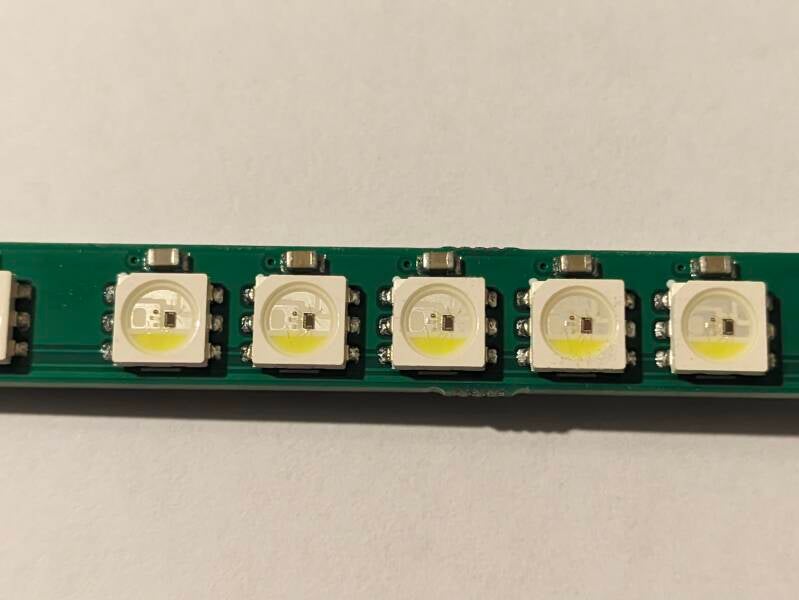

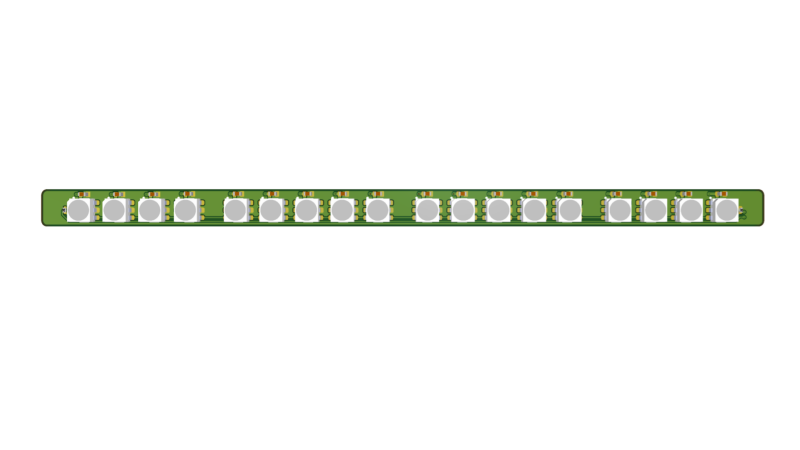

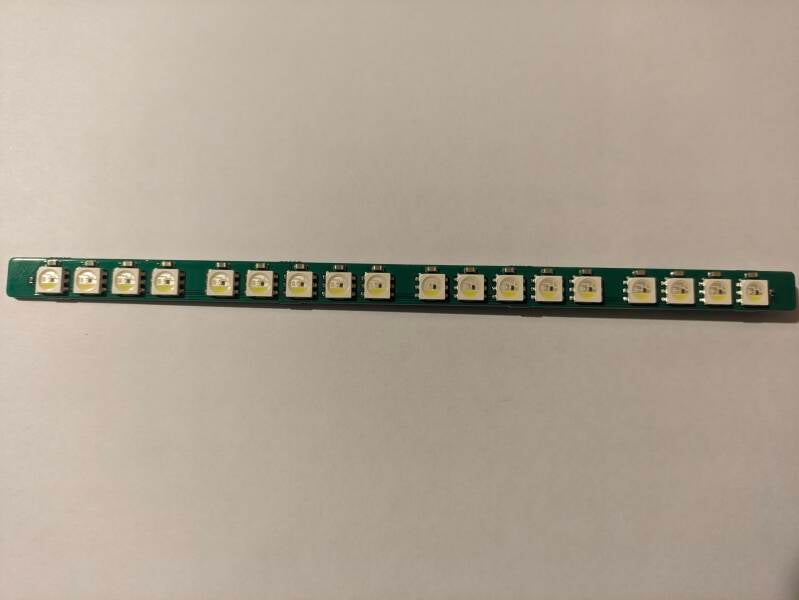

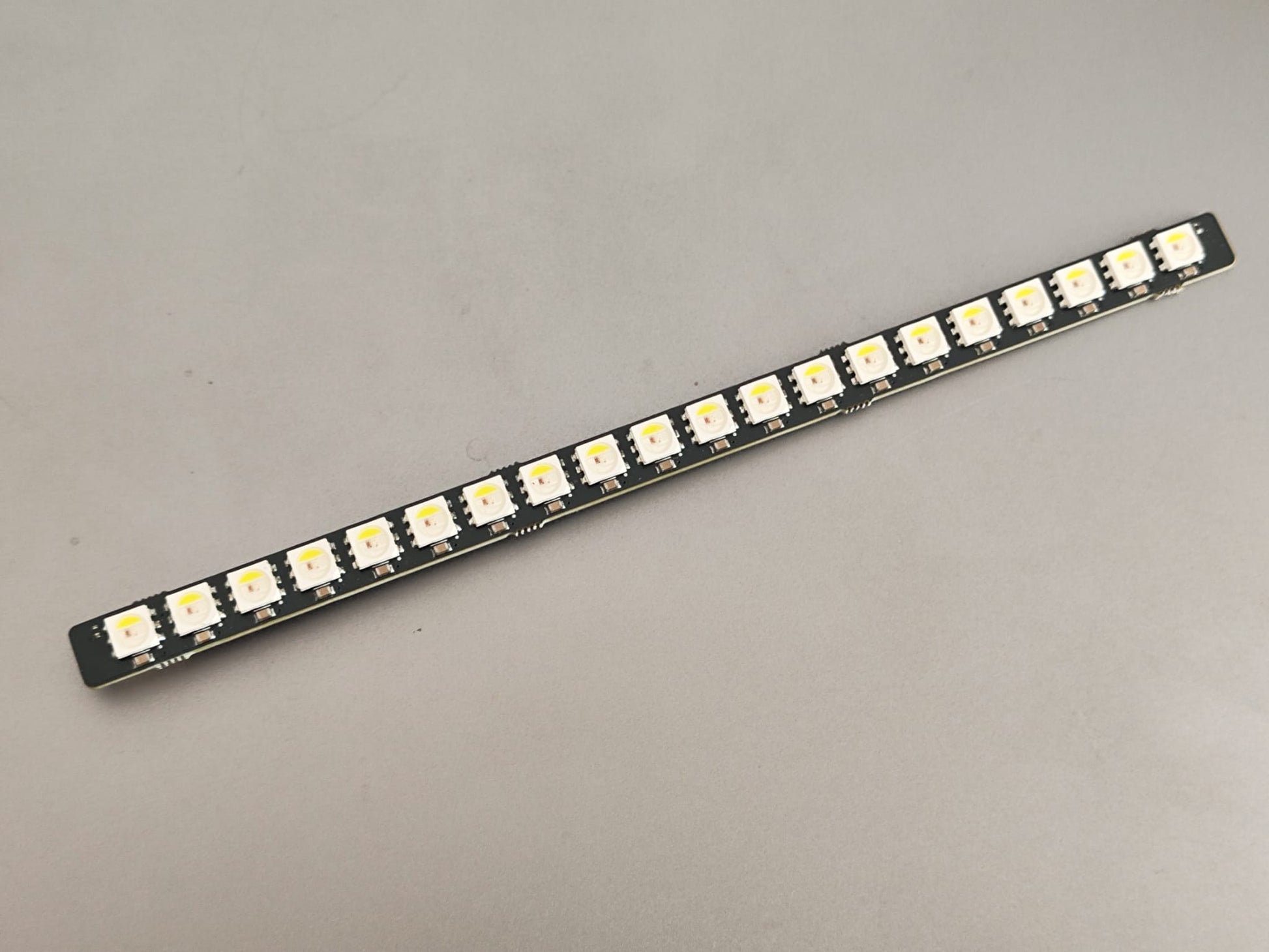

Introducing our high-quality 20 LED diodes 12V RGBW, designed to bring vibrant, customizable lighting to your projects. These LEDs are compatible with the AV box, Fungineers battery box, generic XR box and other boxes. They work with Thor300, JetFleet F6, and any other LED addressable controller that supports addresable RGBW LED diodes (LEDs are WS2815B-RGBW). Perfect for a wide range of applications, these LEDs offer enhanced brightness and color accuracy with the added benefit of a white light channel for more nuanced lighting effects.

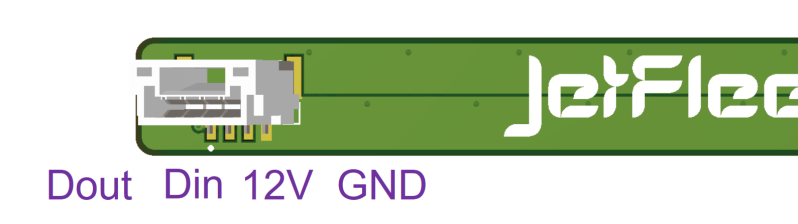

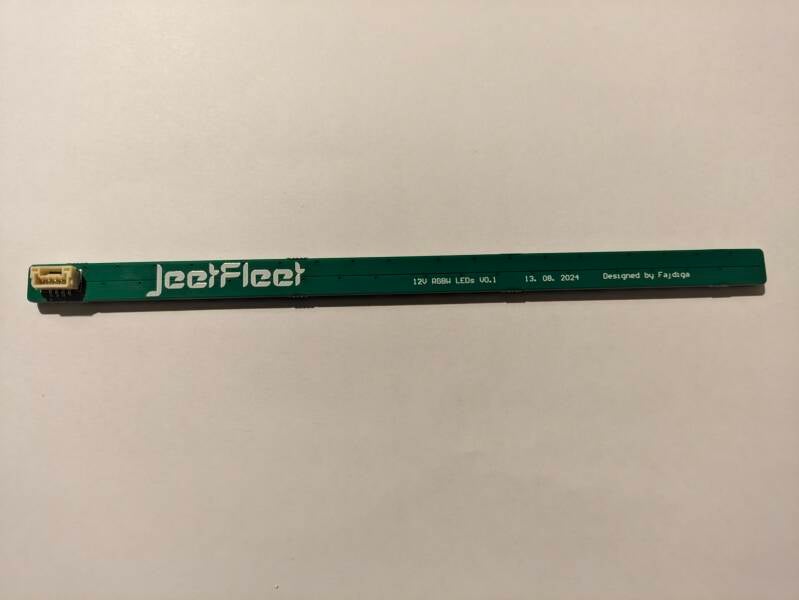

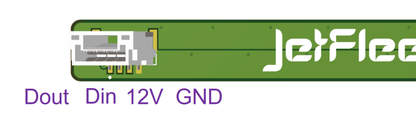

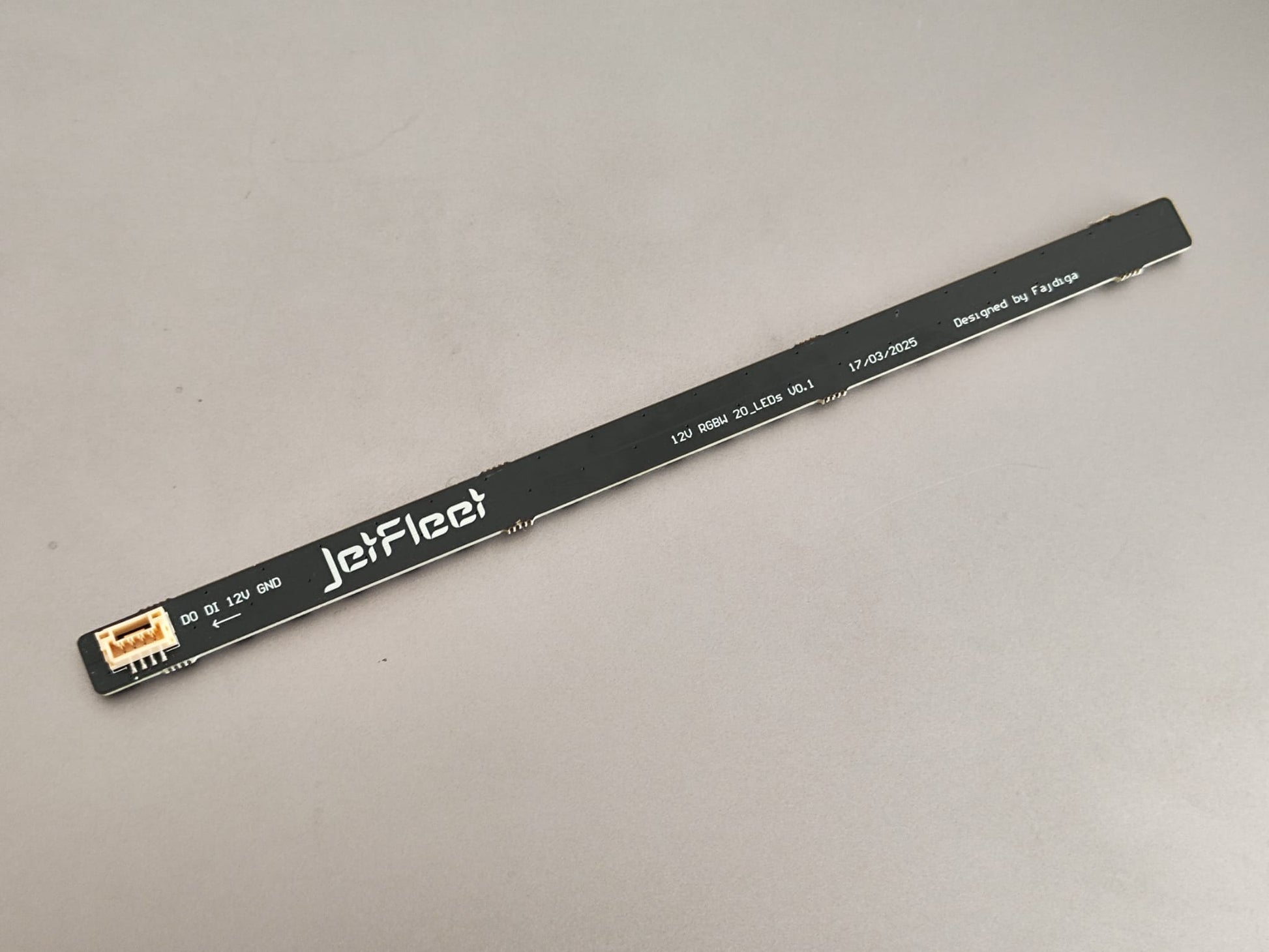

Connector is JST GH 4pin on the back side of LED PCB. (GND, 12V, DIN, DOUT)
Dimensions: 155mm * 8mm
Power requirement: ~0.288W/LED -> ~5.2W/LED strip
Important Note: Before placing your order, please verify that this product meets your specific requirements. Fitment with AV box and other boxes has not been tested by us.
Upgrade your lighting setup with our reliable and versatile 12V RGBW LEDs and experience the difference in quality and performance.
Wire length is 20cm by default.
Options:
12V RGBW: LEDs only

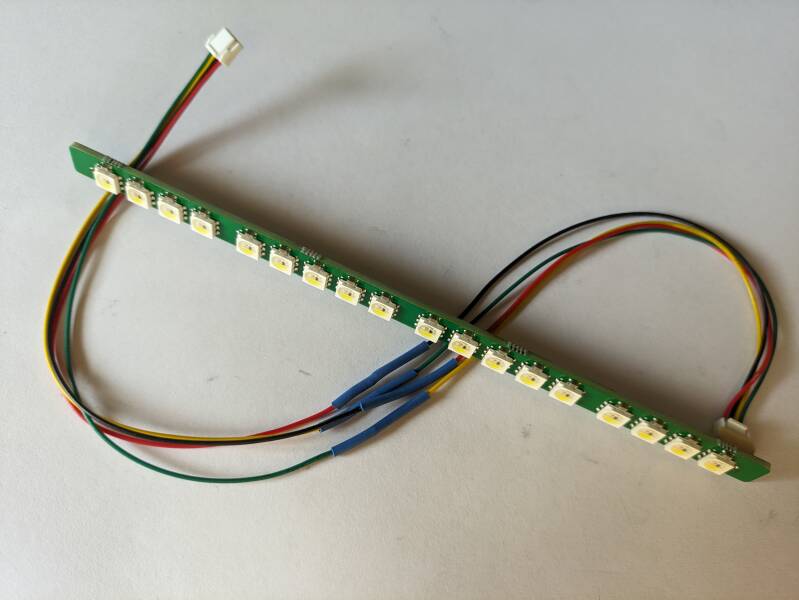

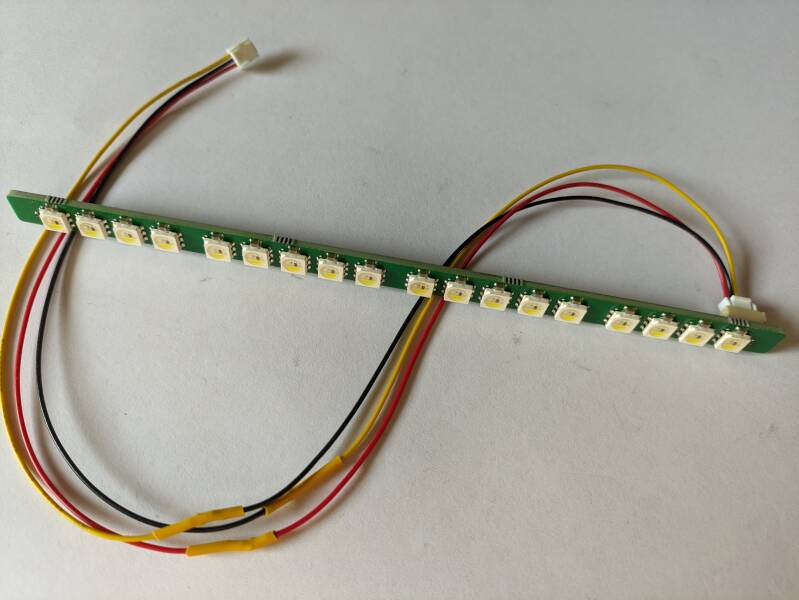

12V RGBW & 3 pin JST GH: LEDs and 200mm long wires with connectors for JetFleet F6
12V RGBW & 4 pin JST GH: LEDs and 200mm long wires with connectors for Thor
I have installed these in both my GTFO and Torquebox2 (X7) builds, they are a higher pixel count replacement to stock options.
Perfect lighting solution for a solid build. I ran a pair of these (front and back) before installing one of the H4 super bright strips in the front. These are already plenty bright as headlights and deliver great colour when paired with a modern float package (I use refloat - can definitely recommend that). They run cool an don't draw a tonne of power. 100% recommended for some flair and road safety at night. Super easy to install - definitely my go-to light.
